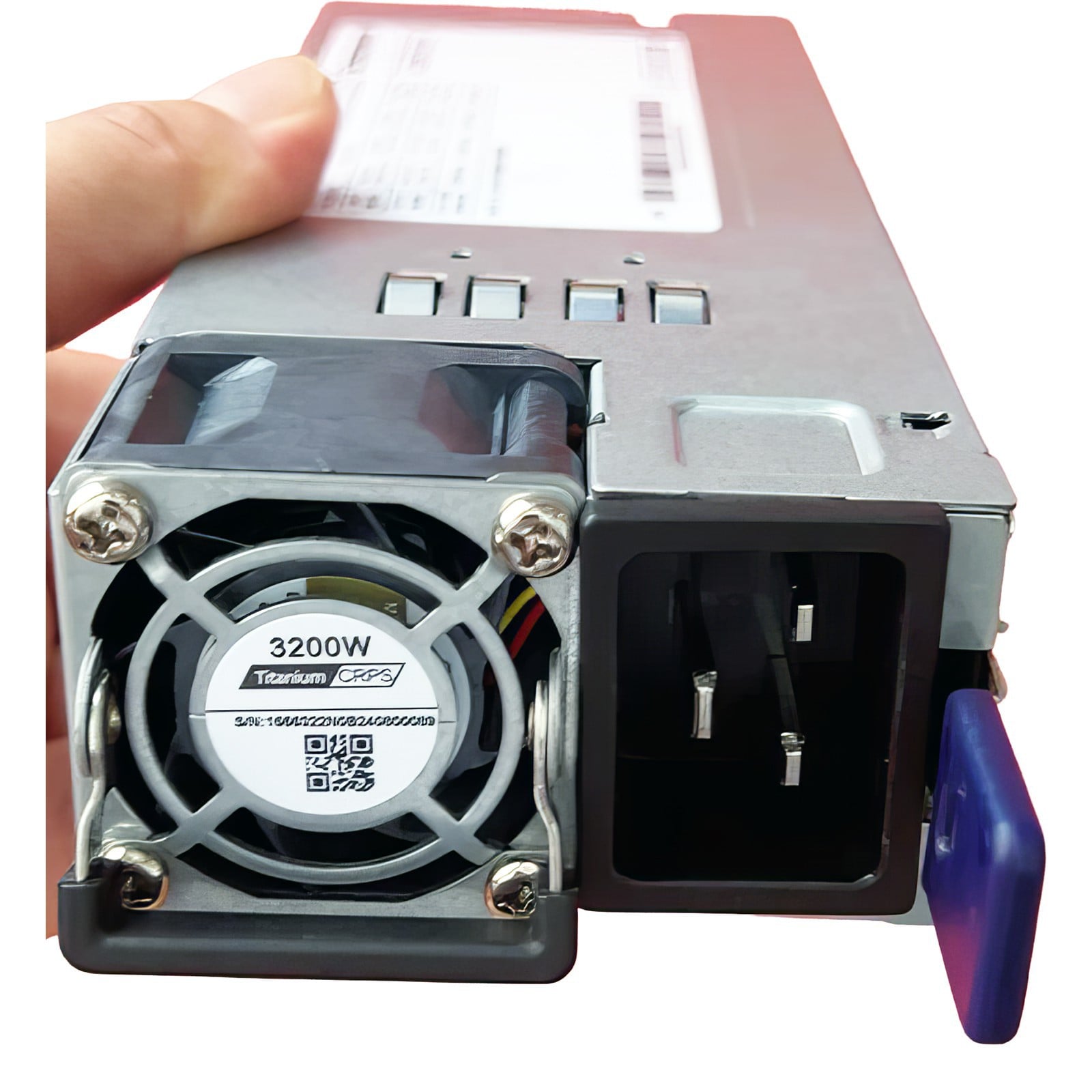

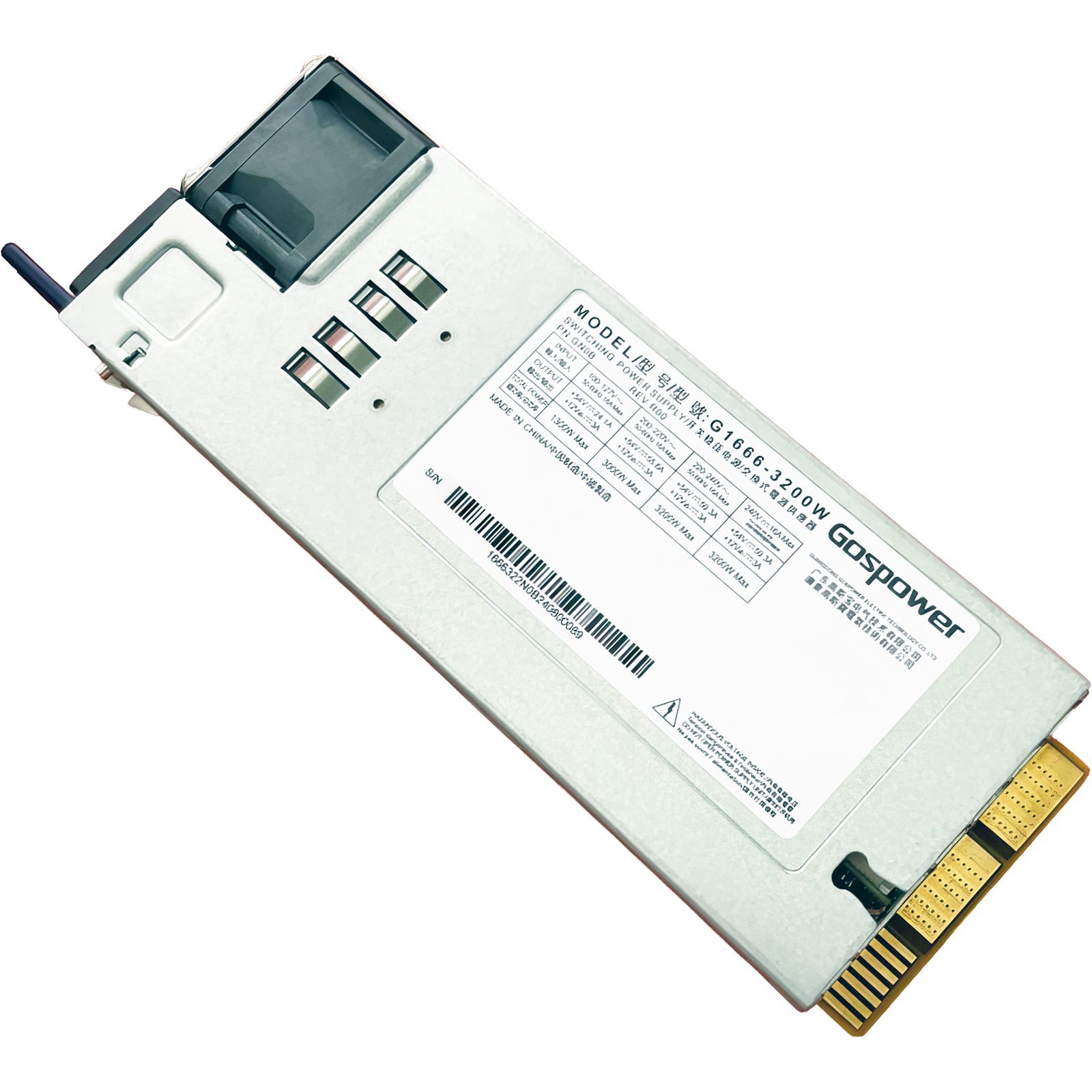

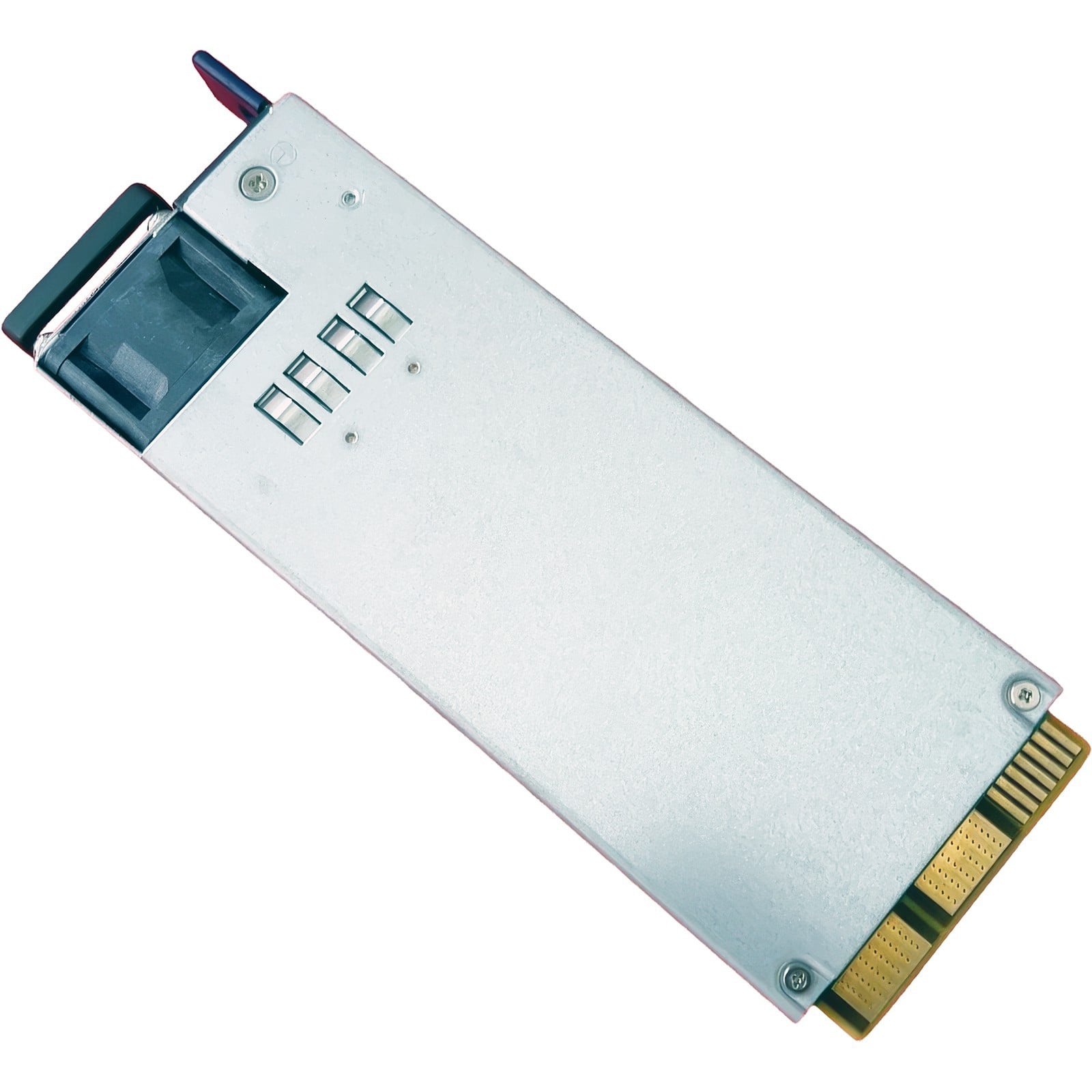

Gospower G1505-3200W 03NX940 Rev. R03 Rev. R01 3200w

Gospower G1505-3200W 03NX940 Rev. R03 Rev. R01 3200w

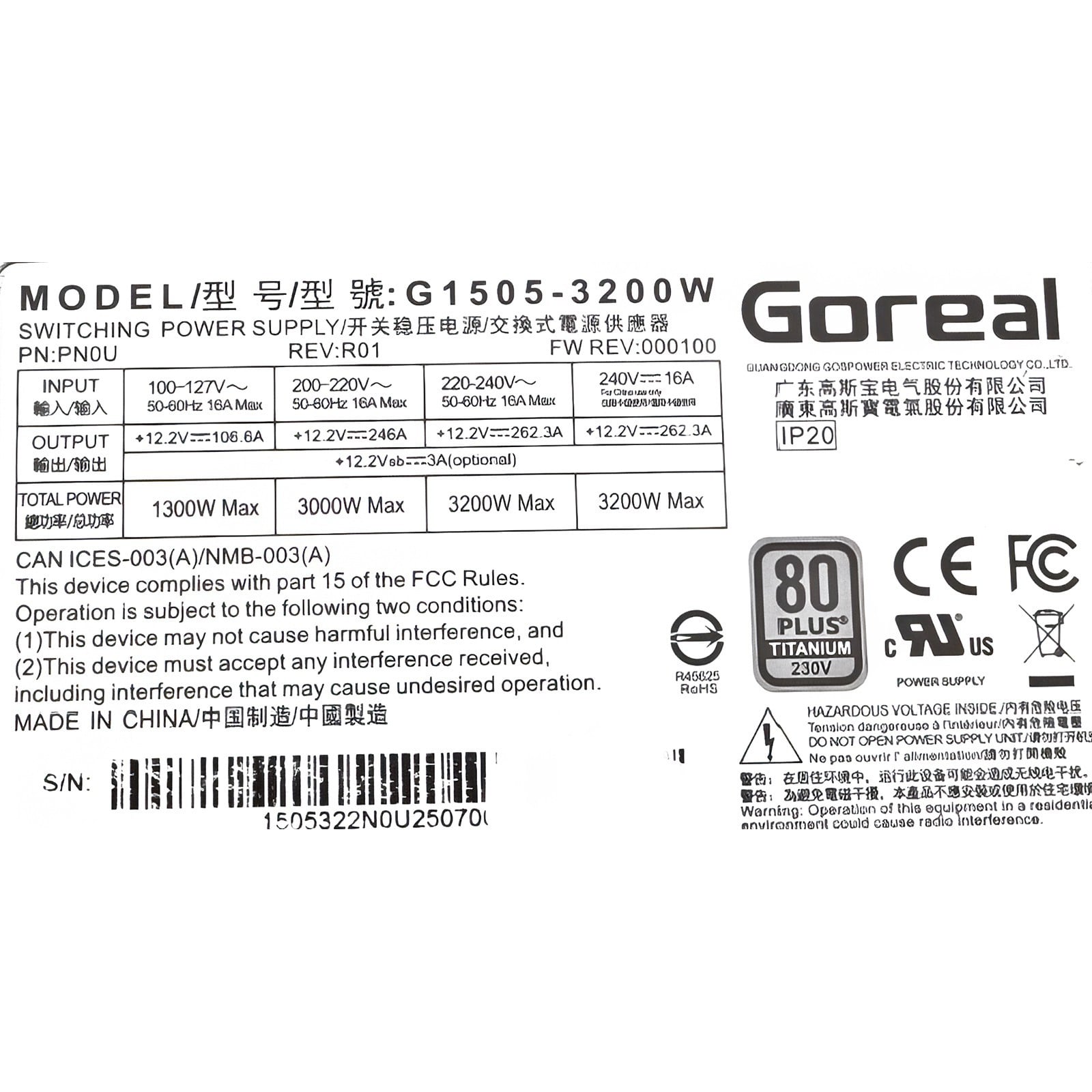

AC Input:

• 100-127v ~ 16a max, 50-60hz
• 200-220v ~ 16a max, 50-60hz
• 200-240v ~ 16a max, 50-60hz

DC Input:

• 240v ⎓ 16a

DC Output:

• +12.2v ⎓ 106.6a (100-127v input)
• +12.2v ⎓ 246a (200-220v input)
• +12.2v ⎓ 262.3a (200-240v input)
• +12.2v ⎓ 262.3a (240v dc input)
• +12.2vsb ⎓ 3a (optional)
• 1300w max (100-127v input)
• 3000w max (200-220v input)
• 3200w max (200-240v ac / 240v dc input)
